MERIT Demolition Tools for Hydraulic Breakers

22 Jul

22Jul

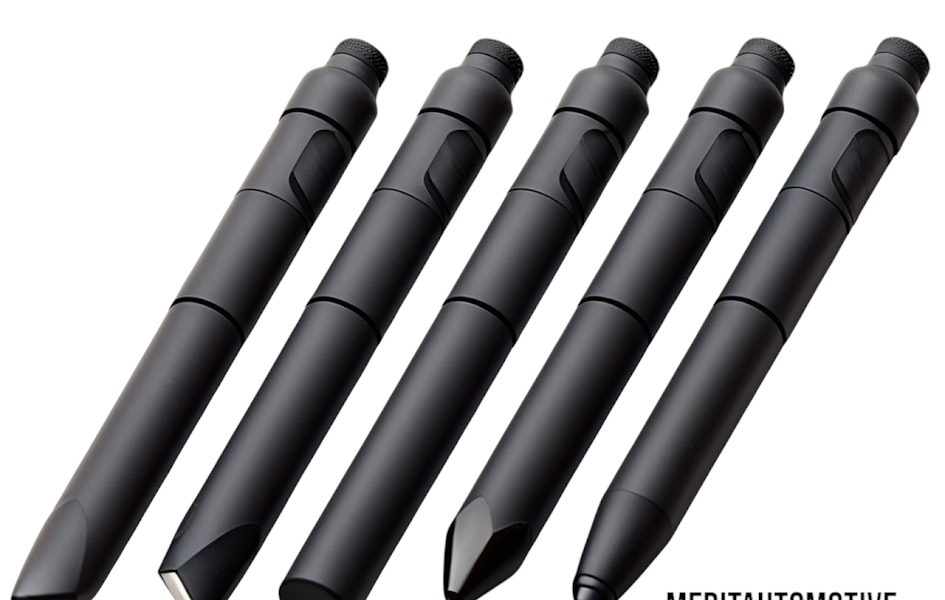

Chisel Tool (FX / FY)

The most commonly used tool in demolition jobs. MERIT chisels come standard in a cross-cut configuration (FX), designed to cut at a right angle to the stick and boom. In-line (FY) chisels are also available upon request.

Applications:

Controlled breakage of concrete
Layered sedimentary rock
Trenching
Oversize breaking
Cutting casting gates
General demolition

Moil Point Tool (P)

Designed with a pointed tip that allows debris and dust to disperse on all sides, increasing penetration speed and effectiveness.Applications:

Soft materials
Breaking vertical concrete structures (e.g., columns)
Highway construction
General demolition

Blunt Tool (E)

Engineered with a large, flat surface to deliver powerful shattering force while maintaining maximum stability.Applications:

Breaking concrete slabs and bridge decking
Oversize material
Slag removal

Core Tool (PC)

A MERIT innovation, the Core Tool is reinforced with a patented carbide steel core, offering unmatched durability and performance in demanding applications. Designed for hydraulic hammers from size PH2 to GH50 and compatible equivalents.Applications:

Hard rock breaking
General demolition

Advantages:

Sharp tip maintained longer – outer steel wears faster than the carbide core
Reduced tool tip temperature (less than 1000 °F), minimizing hardness loss and deformation
Significantly extended tool life – fewer replacements, lower operational costs

Frost Cutter Tool

Available in cross-cut or in-line configuration. Engineered for efficient frost penetration during excavation.Applications:

Frost cutting
Trenching edge cleanout

Asphalt Cutter Tool

Specially designed for precise and efficient asphalt removal.Applications:

Asphalt cutting and stripping
Road maintenance and repair

MERIT – Precision Tools for Tough Jobs For custom tool inquiries or technical specs, contact us!

MERIT’s commitment to quality ensures their tools meet or exceed OEM standards. While MERIT operates independently from Rammer, their products are fully compatible and offer outstanding performance.

MERIT’s Points and Chisels deliver the strength, durability, and reliability needed to get the job done right, every time.
